I find myself in an unsual position: I have three different LP12 subchassis in my possession, none actually installed in a turntable. I doubt very many hifi shops in the world have similar bounties — and if they do have three, they’re probably the three Linn models, not these ones.
So why not take advantage of this peculiar situation and make some comparisons! Since it’s impossible to evaluate how they sound all at once — I only have one LP12, and I’m not yet convinced that subchassis have “sounds” — I’ll limit myself to physical comparisons.
Some rhetorical questions
Why do I have them? For my LP12 Modification Frenzy, which began yesterday.
Which do I have?
- A Linn Kore, purchased used here in Toronto for a very reasonable price. I’ll be mounting an Ekos 2 tonearm on it eventually.
- A Greenstreet “Klone” — more or less a direct copy of a Linn Keel. I can’t/won’t afford one of those, so I got this one for a very reasonable price from Robert in California, who also sold me a bunch of other stuff. He applied the logo, then tried to clean the armboard with alcohol, which fouled the finish. I’ll be stripping it and refinishing at some point. A Naim Aro will be going on this.
- A Mober model. I’ve had great experiences with Edmund of Hercules II fame over the years, so I didn’t hesitate to buy this one from him. I bought it new, and it cost about the same as the other two used. It has Rega geometry for my Roksan Nima. It’s the one I’m starting with.
Okay, here we go.

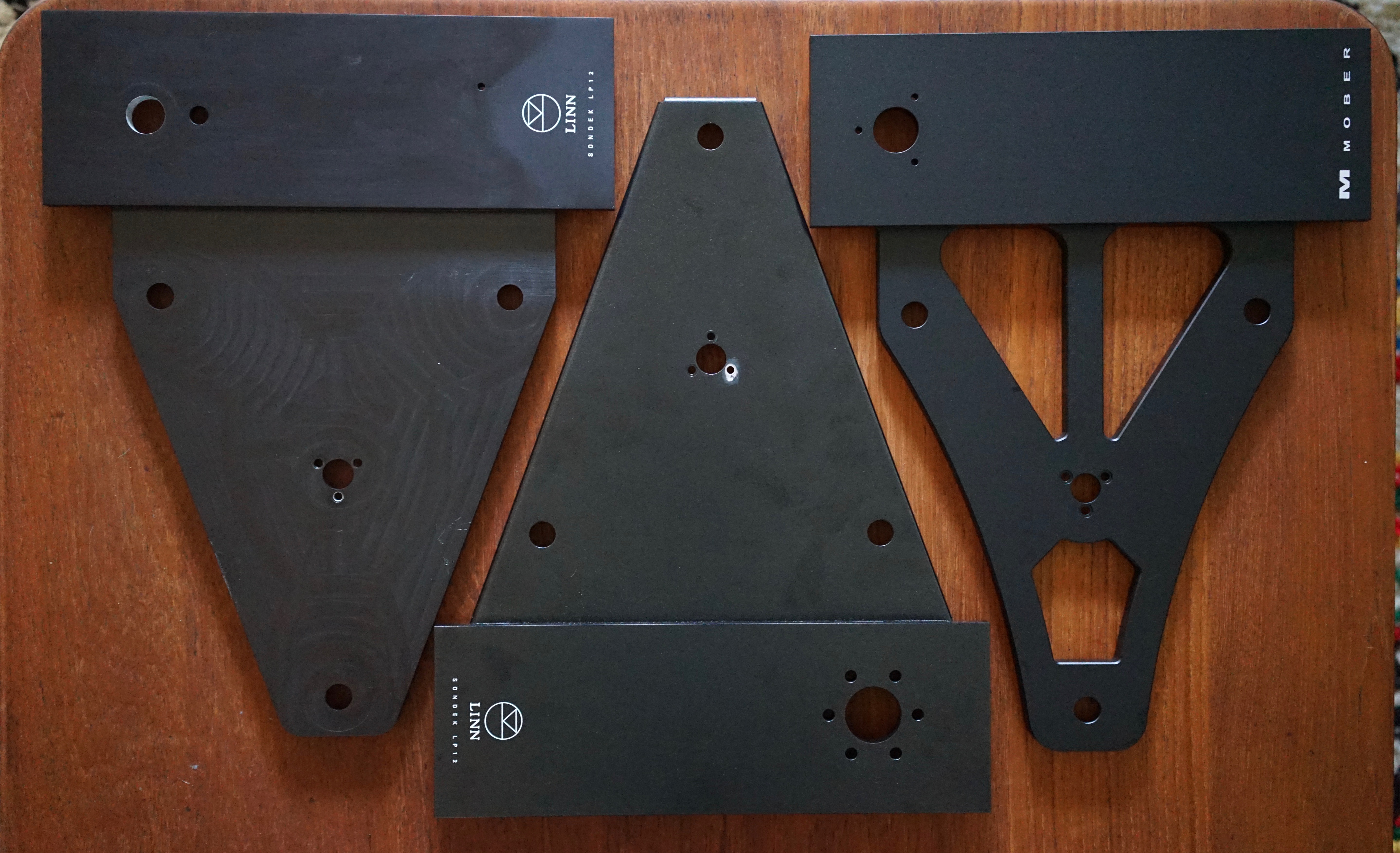

Construction and appearance
The Linn Kore is made of multiple pieces of aluminum glued together, with a machined aluminum armboard. The finish is painted — it’s not quite black, but rather a very dark grey with a bit of a sparkly finish. Obviously it’s got the proper Linn Logo.
The Greenstreet is machined from a single piece of aluminum. The aluminum is sanded to a smooth surface on the armboard; you can see machining marks everywhere that is hidden when installed. It is black anodized. It’s clearly very nicely machined. It comes with no logo — the one you see is a DIY effort by the previous owner.
Like the Greenstreet (and the Keel), the Mober is machined from a single piece of aluminum. (There has been some debate on the forums whether it’s forged, but Edmund said it’s machined, and I don’t see any forging marks. I also doubt whether Edmund would have a big enough order to justify the creation of forging dies. Maybe Linn could — forging would make the Keel cheaper, and arguably stronger.) The surface is uniform but not smooth — it’s more like the finish on my olive Naim Nait 2 case, or my Target stands. It is black anodized. I hoped to be able to remove the logo with nail polish remover, but that didn’t work. Edmund says there is no way to remove it. (Yes, I asked.)
They’re all quite similar in mass. The Kore is heaviest at 1102g, followed by the Greenstreet at 1033g, followed by the Mober at 1011g.
Centre of Gravity
Some have wondered on forums about the different centres of gravity on various subchassis. Well, wonder no more for these three. I’ve indicated the balance points with a little piece of blue sticky tack (as we call “blu-tack” here in Canada). The centre of gravity on the Kore is 13.3cm from the edge of the armboard. The centre of gravity on the Greenstreet and Mober are identical, and closer to the motor: 14.3cm from the edge of the armboard.
This is one I’ve been curious about. It seemed quite clear that the multi-part bonded Kore would ring less than the single-piece Greenstreet and Mober. That was indeed the case. Here are recordings of me knocking each of them with my knuckle, while they’re hanging from a string. I’ve also included a frequency analysis (produced in Audacity) for each knock tone, with the peak frequency for each identified. Every subchassis is a little different here in “liveliest” and/or resonant frequency. I do imagine this would affect playback performance — though exactly how I cannot say.
As you can hear, the Kore does not resonate very much when knocked — it is quite “dead.” Its peak frequency, according to Audacity, is 407 Hz (G#4).
The Greenstreet is much more resonant — much more “lively.” Its frequency peak is very close to that of the Kore: 415 Hz, also G#4.
The Mober rings loudest and longest — is the most “lively” — of three, but is much closer to the Greenstreet than to the Kore. Its peak frequency is 699 Hz, F5 — quite a bit higher than either the Kore or the Greenstreet.
A grain of salt (maybe a rock)
As you can hear, all the ringing is gone. So in the system, it seems that the resonant frequency and the “liveliness” of the subchassis doesn’t have much of an effect.
Here is the frequency analysis of that sound, for what it’s worth. (My ear detects no actual note.) Audacity reads this having a peak frequency of 496 Hz — different from the subchassis in isolation. The next peak is at 689 Hz, close to the Mober’s resonant frequency of 699 Hz.
